Mach LED 6MC Surgical Light
At 140,000 lux, the diverse features of the Mach LED 6MC & 6MC (BASIC) puts it amongst the most modern surgical lights on the market.
State-of-the-art technology and innovative features ensure that Dr. Mach surgical lights offer a performance spectrum that leaves nothing to be desired: Vertical focusing through cascade-like depth illumination, adjustable focus range, HD or 4K video camera, shadow management, near perfect colour rendering, as well as laser pointers for focusing and individually assignable settings via the patented handle stand for an optimum of useful technical possibilities.
Highlights:
Outstanding depth illumination: Cascade system uses lenses focused at 70, 100, and 130 cm to automatically adjust the light beam for different wound depths, eliminating the need for manual adjustments.
Large focusing range: Sterilizable handle adjusts the light field size, providing spot illumination with a focusable beam and constant brightness via mechanical or electronic controls.
Automatic shadow management: When a shadow is detected, affected light clusters turn off while others brighten to maintain even illumination and constant lux, even as the surgeon moves.
Near perfect colour rendition: With Ra = 98 and R9 = 99, this light allows precise detection of tissue colour nuances and red tones, offering natural colors with rich contrast and enhanced visual comfort.
Antibacterial coating: Features a closed, easy-to-clean surface with an antimicrobial coating to prevent microorganism growth and reduce infection risk.
Optimal flow properties: The aerodynamic housing shapes are designed to be ideal for laminar-flow systems (climatic ceilings).
Optional add-ons:
- Shadow management
- Laser pointer
- Communication
- Mechanical adjustment (larger light field diameter)
- Wall-mounted control
- Individual calibration of the colour temperatures and light intensities
- Diverse optional external interfaces and connections (e.g. Storz, Bender etc.)
- Camera preparation for HD or 4K camera
Mach LED 6MC
As a single light, the Mach LED 6MC is available as a wall, ceiling, or mobile light. When combined in a double or triple ceiling configuration, the 6MC can be combined with another 6MC; with other Mach surgical lights like the 8MC or 150MC P; or with accessories like a monitor holder, tray table, or camera holder. Standard and heavy axis fixation and support arms are available based on the desired configuration. Contact us to explore your options.
| 435-0300-0667 | Mach LED 6MC Ceiling mounted (with central spring arm for room height below 2.80 m) |  |
| 435-0300-0668 | Mach LED 6MC Ceiling mounted (for room height between 2.80 m and 3.00 m) | |
| 435-0300-0666 | Mach LED 6MC Wall mounted (excluding power supply) |  |

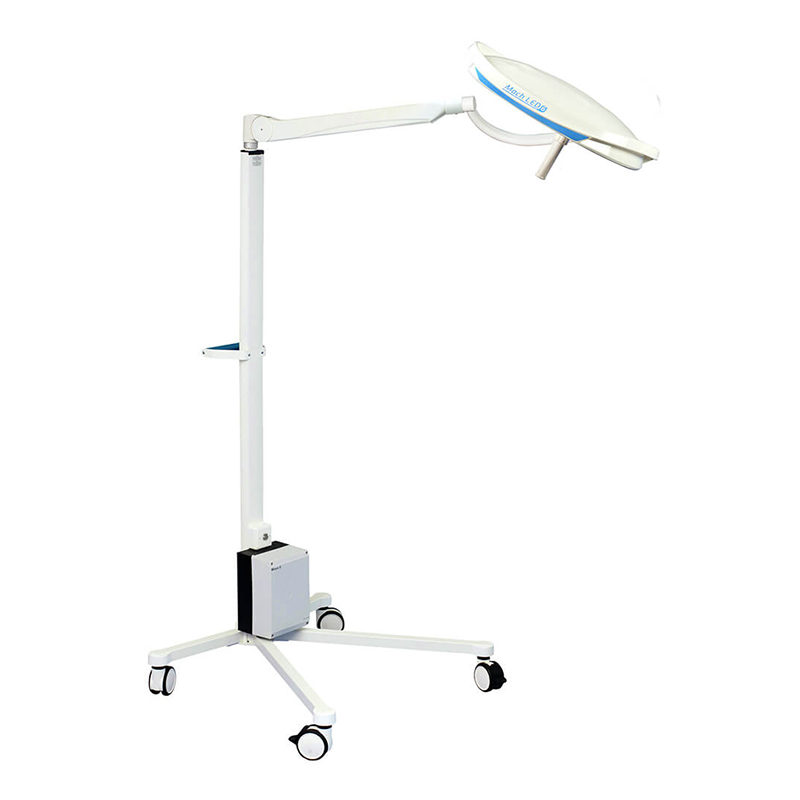

| 435-0300-0665 | Mach LED 6MC Mobile stand (four foot stand, excluding power supply) |  |
Specifications
| Light intensity at 1 metre distance | 140,000 Lux |
| Colour temperature | 3,750 – 4,750 Kelvin |
| Colour rendering index Ra | 98 |
| Colour rendering index R9 | 99 |
| Light field diameter | 18 – 30 cm |
| Diameter of lamp head | 58 |
| Number of LEDs on the lamp head | 69 |
| Lifespan of the LEDs | 60,000 h |
Mach LED 6MC (BASIC)
Can be combined in a double or triple ceiling configuration with another 6MC (BASIC) or with accessories like a monitor holder, tray table, or camera holder. Standard and heavy axis fixation and support arms are available based on the desired configuration. Contact us to explore your options.
| 435-0300-0685* | Mach LED 6MC (BASIC) Ceiling mounted (with central spring arm for room height below 2.80 m) | |
| 435-0300-0686* | Mach LED 6MC (BASIC) Ceiling mounted (for room height between 2.80 m and 3.00 m) | |
Specifications
| Light intensity at 1 metre distance | 140,000 Lux |
| Colour temperature | 4,250 Kelvin (Fixed) |
| Colour rendering index Ra | 98 |
| Colour rendering index R9 | 99 |
| Light field diameter | 18 – 30 cm |
| Diameter of lamp head | 58 |
| Number of LEDs on the lamp head | 69 |
| Lifespan of the LEDs | 60,000 h |
